- Conductive Plastic Element. Gold Plated Terminals.
- High Temp. Thermoplastic Housing. Stainless Steel Shaft.

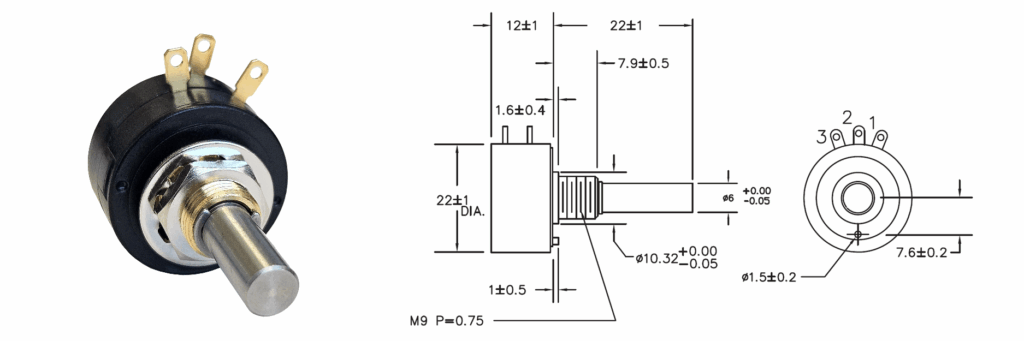

- Bushing Mount M9, shaft dia. 6mm.
- Recommended for Medical Equipment (non-life support), Robotics, Industrial, Test and Lab Equipment.
- Life Expectancy: 10 million turns
- Resistance Tolerance: ± 15% standard ( ± 10% available)
- Linearity Tolerance: ± 1.5% standard ( ± 1.0% available)
- Electrical Angle: 320º ± 5º
- Mechanical Angle: 360º (Continuous)
- Power Rating: 1 Watt
- Torque: Below 0.8 oz. in. (5mN.m.)
- Weight: Approx. 0.7 oz. (30g)
